Product Description

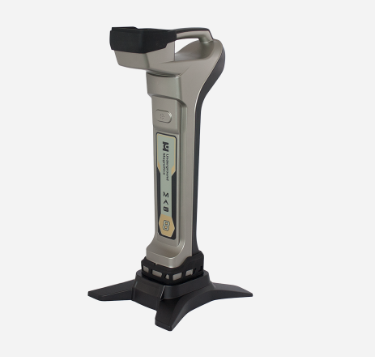

With an easy to use interface and the ability to go up to 360 feet deep with the Echo 110 extended range transmitter, this receiver allows you to go deeper than ever before.
Even with the standard Echo 50 transmitter, this receiver gives you a depth of up to 160 feet.
Easily switch back and forth between walkover and Bore-To mode by simply pressing the enter button, no depth programming required. Add the ability to change not only 10 frequencies down hole but also change between high and low power.
- High precision and high anti-interference Faraday shield 3D antenna structure.
- Industrial rated gold-plated electronic modules.
High-performance DSP. - 2 in 1 locating system, functioning as two locators independently tracking to provide better accuracy and reliability.
- Apply the most advanced forward single point mode.
| Additional Information | |
| Weight | 6.5 lbs |
| Dimensions | 12" x 5" x 27" |
| System Frequency | 10 Frequencies, 4kHz through 31kHz |
| Water Resistance | IP65 |
| Telemetry | 4 radio channels with range up to 3,000 ft |
| Rechargeable Lithium Battery Pack | 12.5V |
| Battery Life | Up to 50 hours |
| Compatible Transmitters | Echo ST, Echo ST-DX, Echo 1, Echo 2S, Echo 3, Echo 50, Echo 60, Echo 90, and Echo 110 |
The Mag D8 is the remote display that pairs with the Mag 8 receiver.
With its easy-to-read under sunlight, 5 inch industrial LCD screen, this display is exactly what drill rig operators need. Use the standard antenna to get a range of 1,800 feet, or use the extended range antenna for a range of up to 3,000 feet. Add in the user friendly interface and you have the perfect product to pair with the Mag 8 receiver. It also has the ability to change frequency as well as power modes down hole when using the Echo 2S, Echo 3, Echo50, Echo 60, Echo 90, or Echo 110 transmitters.
| Additional Information | |
| Weight | 3.5 lbs |
| Dimensions | 7.5" x 5" x 7.5" |
| Power | Lithium rechargeable batteries |
| Battery life | Up to 50 hours |
| Screen | 5 inch Industrial rated LCD graphic screen |
| Telemetry | 4 radio channels with range up to 3,000 ft |
| Temperature | Under 145°F |
| Water Resistant | IP65 |
| Down Hole Echo Mode Change | Yes |
The Echo 50 is an extended range transmitter that offers up to ten frequencies as well as two power modes. Switch not only frequency but also power mode down hole. With a depth range of up to 160 feet in High Power Mode, the Echo 50 offers exceptional versatility in all drilling environments.
No job is too big nor is any interference too loud for the Echo 50.
Most powerful standard size transmitter in the world.
| ST | X Mini | 1 | 2S | 3 | 50 | 60 | 90 | 110 | |
| Dimensions | 0.87" x 6.25" | 1" x 8" | 1.25" x 15" | 1.25" x 15" | 1.25" x 19" | 1.25" x 15" | 1.24" x 19" | 1.42" x 18" | 1.42" X 24" |
| Frequency | 30kHz | 19kHz/30kHz | 4kHz/19kHz/30kHz | 4kHz/19kHz/30kHz | 4kHz/19kHz/30kHz | 4kHz - 31kHz | 4kHz - 31kHz | 4kHz - 31kHz | 4kHz - 31kHz |
| Depth Range | 60ft | 60ft | 90ft/130ft/130ft | 90ft/130ft/130ft (normal power) 90ft/160ft/160ft (high power) |
90ft/130ft/130ft - Normal 90ft/190ft/190ft - Power + Mode |
90ft/130ft/130ft - Normal 90ft/160ft/160ft - High Power |
90ft/130ft/130ft - Normal 90ft/190ft/190ft - Power + Mode |
230ft - Normal 295ft - High Power |
295ft - Normal 360ft - High Power |
| Battery Type | 3V Lithium Battery | 1x 18650 Rechargeable Lithium Battery | 2 C-cell batteries, Echo Power Cells | 2 C-cell batteries, Echo Cell Kit or Lithium Battery pack | 2 C-cell batteries or 2 Echo Power Cells | 2 C-cell batteries, Echo Power Cells | 2 Echo Cell Kits or 2 Lithium Battery packs | 18650 B2 x 2 Rechargable, Lithium | 18650 B2 x 3 Rechargable, Lithium |
| Battery life | 20 hrs | 20 hrs | 12 hrs, 20 hrs or 48 hrs | 12 hrs, 20 hrs or 48 hrs (normal power) NA, 5 hrs, or 12 hrs (high power) |
50 hrs or 160 hrs - Normal 12 hrs or 40 hrs - Power + Mode |
12 hrs, 20 hrs, or 48 hrs - Normal NA, 5 hrs, or 12 hrs - High Power |
50 hrs or 160 hrs - Normal 12 hrs or 40 hrs - Power + Mode |
80 hrs - Normal 20 hrs - High Power |
120 hrs - Normal 30 hrs - High Power |
Your Echo Cell rechargeable lithium batteries are charged and ready to use. Insert one lithium battery into the Echo Cell cartridge matching the polarity and screw the end cap on. Insert into your Echo transmitter positive side down. The Echo Cell should provide power for approximately 20 hours of use. These lithium batteries are specially designed with a protective circuit that will allow the operation of the battery until completely dead without harming the battery. Only use the provided UM charger when recharging your Echo Cell batteries.
Transmitter Spec Sheet 50 and 60
